DRESS MAKING - 26 . B O Y ' S P Y J A M A

                  BOY ' S PYJAMA









BOY ' S PYJAMA
MEASUREMENTS :---

SEAT = 18 "

LENGTH = SEAT + 4 " = 22 " ( WAIST TO BOTTOM )

PAPER MEASUREMENTS :----

length = 22 " + 3 " = 25 " ( 1 1/2 " waist fold
1 1/2 " bottom fold )

width = ( 1/3 seat + 3 " ) = 9 " on fold

Take 24 " length , 18 " width of paper and fold center

in the width wise , keep the fold in the left side .

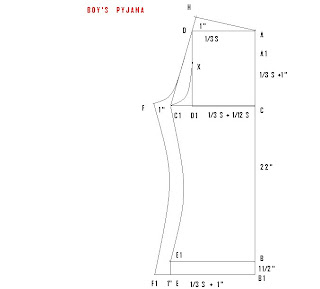

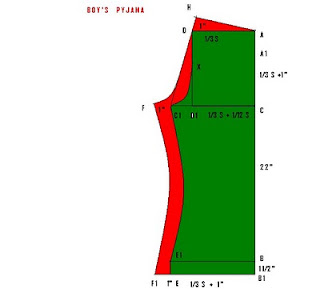

CONSTRUCTION OF LINES :----

FRONT SIDE :---

A A1 = 1 1/2 " for fold

A 1 B = Full length

B B1 = 1 1/2 " for bottom fold

A C = 1/3 Seat + 1 "

C C1 = 1/3 seat + 1/12 seat

A D = 1/3 seat

D D1 = straight line

A C = D D1

D 1 X = 1/6 seat up

join C 1 X D with curve shape .

B 1 E = 1/3 seat + 1 "

E E 1 = 1 1/ 2 "

join C 1 E 1 E with curve shape .

BACK SIDE :----

D H = 1 " up

A H join .

C 1 H join .

C 1 F = 1 " outside .

E F 1 = 1 " out side .

F H = join with curve shape .

F F 1 join with curve shape .

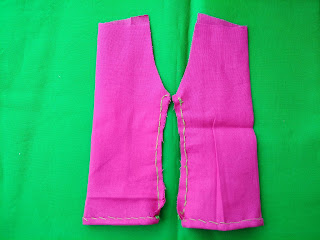

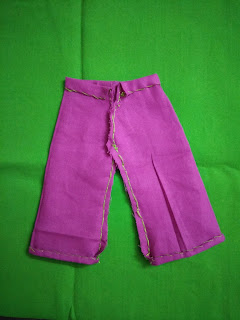

SEAMS AND PROCESS :----


1 . Join front and back with run and fell seam .

2 . stitch center with run and fell seam .

3 . fold and hem at waist and bottom .

SUITABLE CLOTH :----

lon cloth , poplin , terrycloth , white cotton or straiped cloths .

CLOTH ESTIMATION :---

TWO LENGTHS
