'A' LINE FROCK
MEASUREMENTS :-----
CHEST =24"
LENGTH = 20 " , 23"

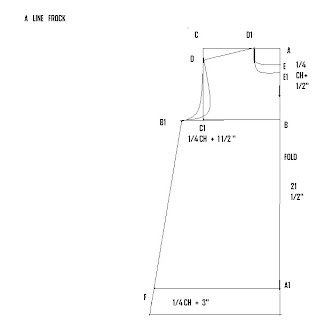

CONSTRUCTION OF LINES :----
BACK SIDE :---
A A1 = full length + 1 1/2 " for folding
A B = 1/4 ch - 1/2 "
B B1 = 1/4 ch + 1 1/2 "
B 1 straight line
A C = 1/2 shoulder + 1/4 "
C C1 straight line
C D =1/2 " down .
A D 1 = 1/ 12 ch
D D1 = shoulder join
A E 1 = 1 " down from ' A '
join D 1 E back neck shape
join B 1 D armhole shape
A 1 F = 1/4 ch + 3 "
join B 1 F
FRONT SIDE :---
A E 1 =1/12 ch
join D 1 E 1 front neck shape .
join D B1 front armhole shape .
A LINE FROCK SLEEVES :----

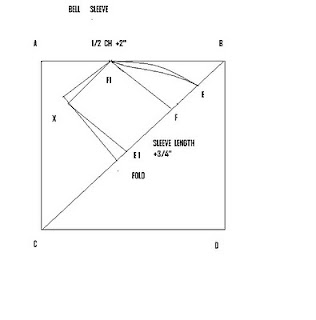

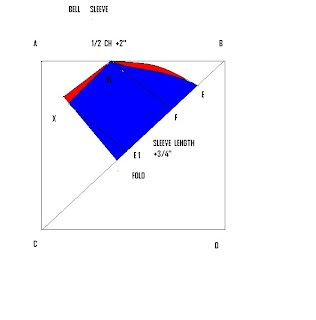

BELL SLEEVES :----
A B =1/2 ch + 2"
A B = C D
join B C
B E = 1/8 ch
E F = 1/12 ch + 1/2 "
E E 1 = Sleeve length + 3 / 4"
F F 1 = 1/4 ch
join F1 X .
X G = 3/4 " outside
join G G1 with round shape .
join F1 E front , back sleeve shapes .
SEAMS AND PROCESS :---
1 . Plain seams at sides and shoulder .
2 . Hem at bottom and sleeves bottom also .
3 . Neck should finish with piping .
SUITABLE MATERIAL :----
PRINTED , NYLON , CAMBRIC AND CHECKED MATERIAL .
etc .
CLOTH ESTIMATION :---
1 body length + 1 sleeve length + 2 skirt lengths .
