DRESS MAKING - 30 .B L O U S E W I T H B A N D

BLOUSE  WITH   BAND

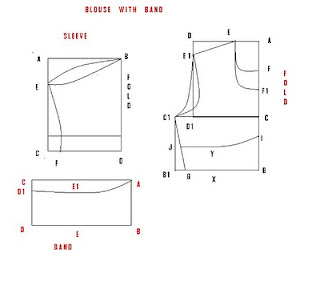

LAYOUT      OF     BLOUSE


























MEASUREMENTS :---

chest = 36 "

length = 15 " --- 1/2 ch - 3 "

shoulder = 1/6 + 1 1/2 "

waist loose = ch - 4 " or 6 "

sleeve length = 1/4 ch

sleeve bottom =1/4 ch + 2 "

CONSTRUCTION OF LINES :----

BACK SIDE :----

A B = Length + 1"

A C = 1/4 ch - 1/2 "


A D = 1 /2 shoulder + 1/4 "

D D1 straight line down

A E = 1/ 12 ch

D E 1 = 1/ 2 " down from D

join E E 1

A F = 1 " ; join E F with back neck shape .

join C 1 E 1 with back armhole shape

C C1 = B B1

B 1 G = 1/2 " inside

join C 1 G

B G center X , Put dart . Dart length should be 3 1/2 " .

FRONT SIDE :---

A F 1 = 5 "

join EF 1 front neck

join C E 1 front armhole shape .

B 1 I = 3 "


X Y = 2 "

G J = 2 "

Join J I with curve shape .

BAND :----

A B = 3 1 /2 "


A C = 1/4 waist

A B = C D

D D 1 = 2 1/2 "

E E 1 =2 1/2 "

Join A E 1 D 1 .

SLEEVES :----

A C = sleeve length + 1 1/2 "

A B = 1/2 shoulder + 1/4 "

A B = C D


A E = 1/ 12 ch

join E B with front and back sleeve shapes .

C F = 1 "
inside

join E F with side shape .

join E B with front and back sleeve shapes .


SEAM    ALLOWANCES  :---

1. Leave    1/2"   extra  for  sides .
2. Leave     1/2"   extra   for   other    places.
3. Leave     1/2"   extra  for  front  side  than  backside .


SEAMS AND PROCESS :-----
1.First   join   shoulders .
2.Stitch    darts   and  then  attach  band .
3.stitch    openings  .
4. Plain seams at sides and shoulder .
5. Hem at sleeve bottom and blouse waist .
6.Neck should finished with false hem or piping .

SUITABLE MATERIAL :-----

Printed , poplin , any soft material .

CLOTH ESTIMATION :----

2 full lengths + 1 sleeve length + 3 "
