NIGHT SUIT
MEASUREMENTS :---
SHIRT :---
CHEST = 36 "
LENGTH = 28 "
SHOULDER = 18 " --> 1/2 ch
SLEEVES = 24 " --> 2/3 rd ch
NECK = 15 " --> 1/3 rd ch
PYJAMA :---
SEAT = 36 "
LENGTH = 40 " or 42 "
CONSTRUCTION OF LINES :---SHIRT -- FRONT :---
A A1 = 1/3/4" for facing .
A 1 B = full length + 1 1/2 " for folding .
B X =1 3/4 " down for bottom shape .
A C = 1/4 ch
A D = 1/2 shoulder + 1/4 "
D D1 straight line.
A C = D D1
D E = 3/4 down from ' D '
A1E1 = 1/12 ch
A 1 F = 1/12 ch
E1 G = 1"
Join E1G F for neck neck.
D1H = 1/12 ch
join H E with front armhole shape.
C X = H D
POCKET :---
LENGTH = 1/6 th ch + 1/2 "
WIDTH = 1/6 th ch
2 " up from bottom and 2 " inside of the opening
BACK :---
F G 1 = 3/4 " up
E 1G 1 = back neck join.
H E join for back armhole shape.
SLEEVES :---
A B = full length + 1/2 "
A C = 1/4 ch
A B = CD
C E = 1/12 ch + 1"
B F = 1/4 th ch - 1/2 "
join E F , A E front and back sleeve shapes .
COLLAR :---
A B = 1/2 neck + 1/2 "
A C = 1/12 " ch
A B = C D
A E = 3/4 " out side
A E join , E F , C F = 1/2 " up
F D join with curve shape .

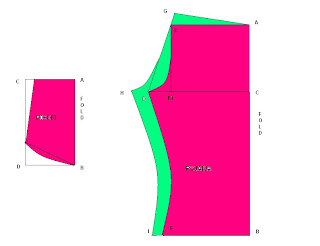

PYJAMA :---
FRONT :---
A B = 25"
A C = 1/3 seat + 1"
C D = 1/3 seat + 1/12 seat
A E = 1/3 seat
Join E E1 straight line
B F = 8 " ( 1/2 bottom - 1 " )
join D F with a curve for the inner leg .
join E D with a curve for the fork line .
BACK :--
join D E with a straight line .
Go up 1 " from E . Mark G.
Go out 1 1/2 " from D . Mark H , and 1 " from F . Mark I .
Join I H with a slight inner curve and G H with a curve for the back
fork line .
join A G with a straight line for the waist .
STITCHING :---
1. Keep 2 " extra along the length for the bottom hem . When finished it should
be 1 1/2 ".
2 . Keep 1/2 " extra for the front and back fork line run and fell seam for the
inner legs .
3 . Keep 1/2 " extra for at the waist to have 1 " hem when finished for
passing the tape through .
MEASUREMENTS :---
SHIRT :---
CHEST = 36 "
LENGTH = 28 "
SHOULDER = 18 " --> 1/2 ch
SLEEVES = 24 " --> 2/3 rd ch
NECK = 15 " --> 1/3 rd ch
SEAT = 36 "
LENGTH = 40 " or 42 "
CONSTRUCTION OF LINES :---SHIRT -- FRONT :---
A A1 = 1/3/4" for facing .
A 1 B = full length + 1 1/2 " for folding .
B X =1 3/4 " down for bottom shape .
A C = 1/4 ch
A D = 1/2 shoulder + 1/4 "
D D1 straight line.
A C = D D1
D E = 3/4 down from ' D '
A1E1 = 1/12 ch
A 1 F = 1/12 ch
E1 G = 1"
Join E1G F for neck neck.
D1H = 1/12 ch
join H E with front armhole shape.
C X = H D
POCKET :---
LENGTH = 1/6 th ch + 1/2 "
WIDTH = 1/6 th ch
2 " up from bottom and 2 " inside of the opening
BACK :---
F G 1 = 3/4 " up
E 1G 1 = back neck join.
H E join for back armhole shape.
SLEEVES :---
A B = full length + 1/2 "
A C = 1/4 ch
A B = CD
C E = 1/12 ch + 1"
B F = 1/4 th ch - 1/2 "
join E F , A E front and back sleeve shapes .
COLLAR :---
A B = 1/2 neck + 1/2 "
A C = 1/12 " ch
A B = C D
A E = 3/4 " out side
A E join , E F , C F = 1/2 " up
F D join with curve shape .
PYJAMA :---
FRONT :---
A B = 25"
A C = 1/3 seat + 1"
C D = 1/3 seat + 1/12 seat
A E = 1/3 seat
Join E E1 straight line
B F = 8 " ( 1/2 bottom - 1 " )
join D F with a curve for the inner leg .
join E D with a curve for the fork line .
BACK :--
join D E with a straight line .
Go up 1 " from E . Mark G.
Go out 1 1/2 " from D . Mark H , and 1 " from F . Mark I .
Join I H with a slight inner curve and G H with a curve for the back
fork line .
join A G with a straight line for the waist .
STITCHING :---
1. Keep 2 " extra along the length for the bottom hem . When finished it should
be 1 1/2 ".
2 . Keep 1/2 " extra for the front and back fork line run and fell seam for the
inner legs .
3 . Keep 1/2 " extra for at the waist to have 1 " hem when finished for
passing the tape through .
